580

Horsepower

10,000

RPM

Details

  • Our compact four-cylinder engine is built for high cylinder pressures and an impressive power-to-weight ratio — making it the perfect solution for applications where every millimetre & horsepower counts.

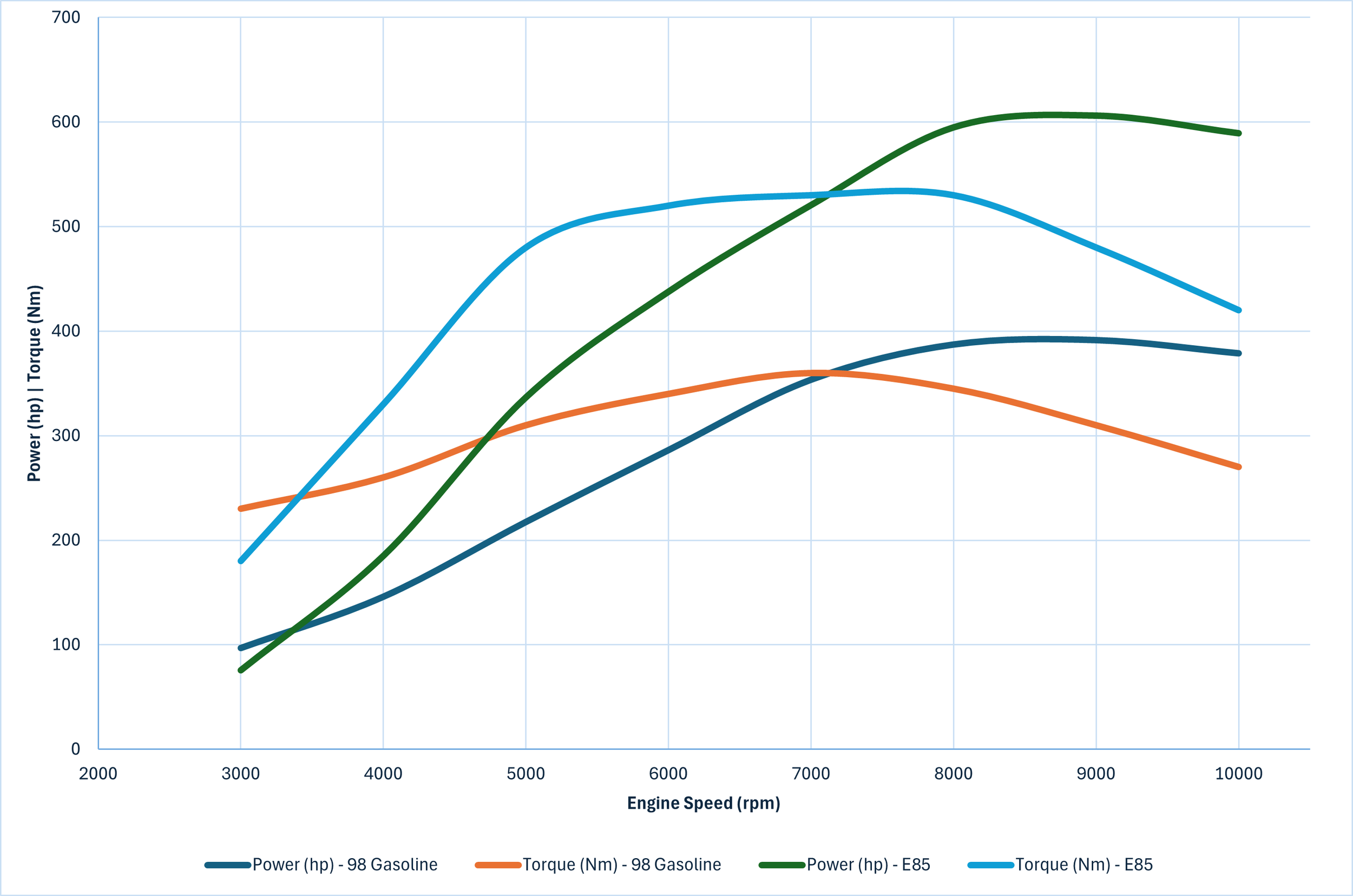

    Peak power 450kW (605hp) at 8,800 rpm on E85

    Peak torque 530Nm (390 ft-lbs) at 7,800rpm on E85

    Gasoline compatible: 295hp, 360Nm

    10,000 rpm maximum

  • Total engine weight <100kg including manifolds, turbocharger and ancillaries (alternator)

    Modular fitment to transmission and vehicle installation

    Overall engine dimensions are approximately 285mm Wide, 465mm High, 530mm Long

  • Utilising a Kawasaki marine cylinder head technology

    Optionally supplied fully calibrated with a Bosch Motorsport ECU including advanced knock control

    Performance stated coupled with Borg Warner VGT turbocharger. Also can be matched with a Garret G25-660 or other turbo charger

    9.5:1 compression ratio

    84mm Bore, 77.6m Stroke

  • Pricing starts from NZD$65,000 | USD$38,000
